Made in USA

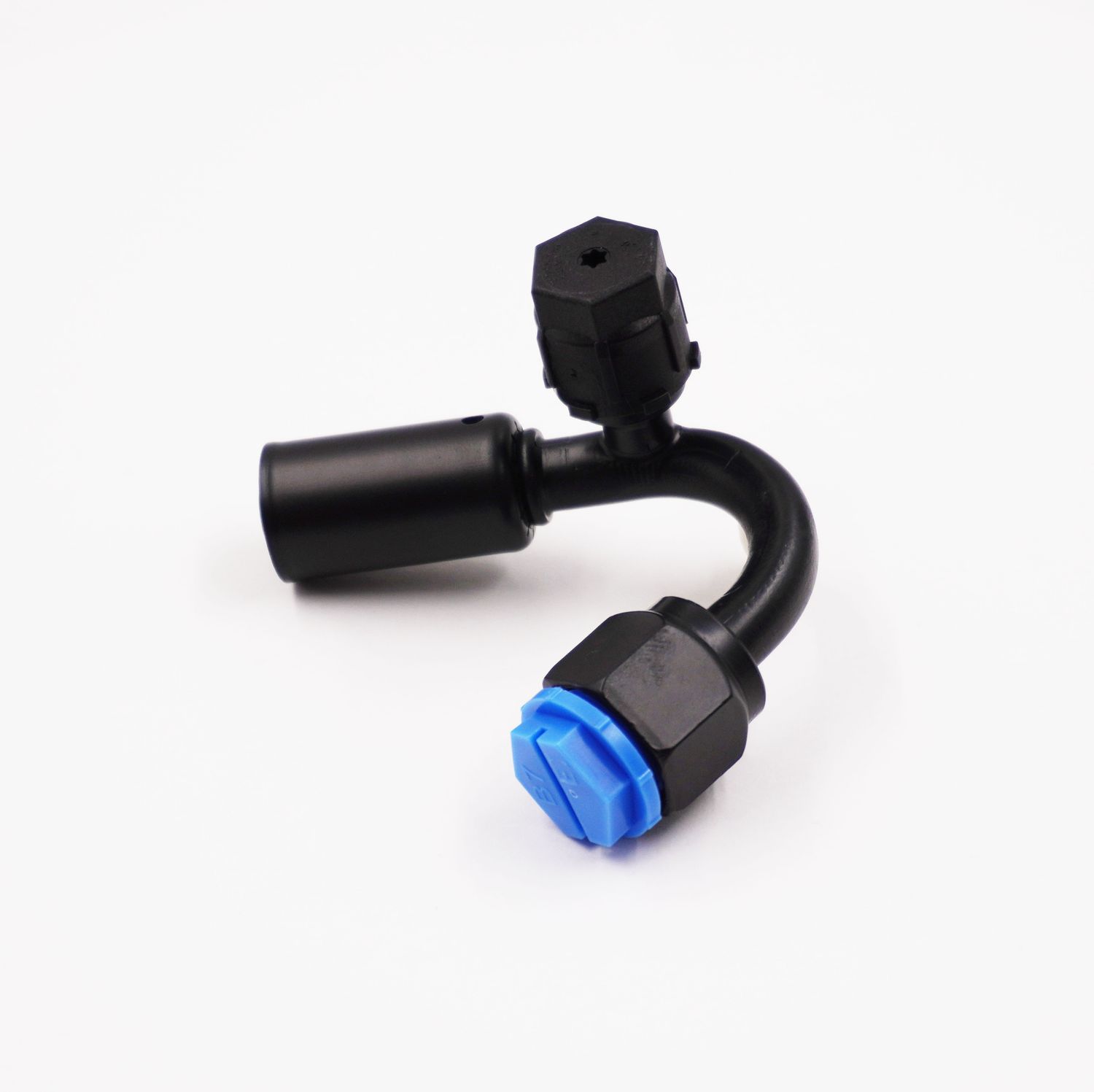

Select your required size (#8 or #10) from the radio buttons above. Our new Pure Stealth Reduced Barrier A/C fittings add a stealthy aesthetic to your under-hood plumbing. Nothing looks worse in a well-detailed engine compartment than a mismatched array of hoses and fittings. Pure Stealth is the solution.

Pure Stealth Reduced Barrier Fittings are coated with our proprietary ceramic coating that is engineered to withstand the crimping process. The coating is extremely durable but it can be scratched. Care should be taken during the crimping and installation process to prevent damaging the coating.

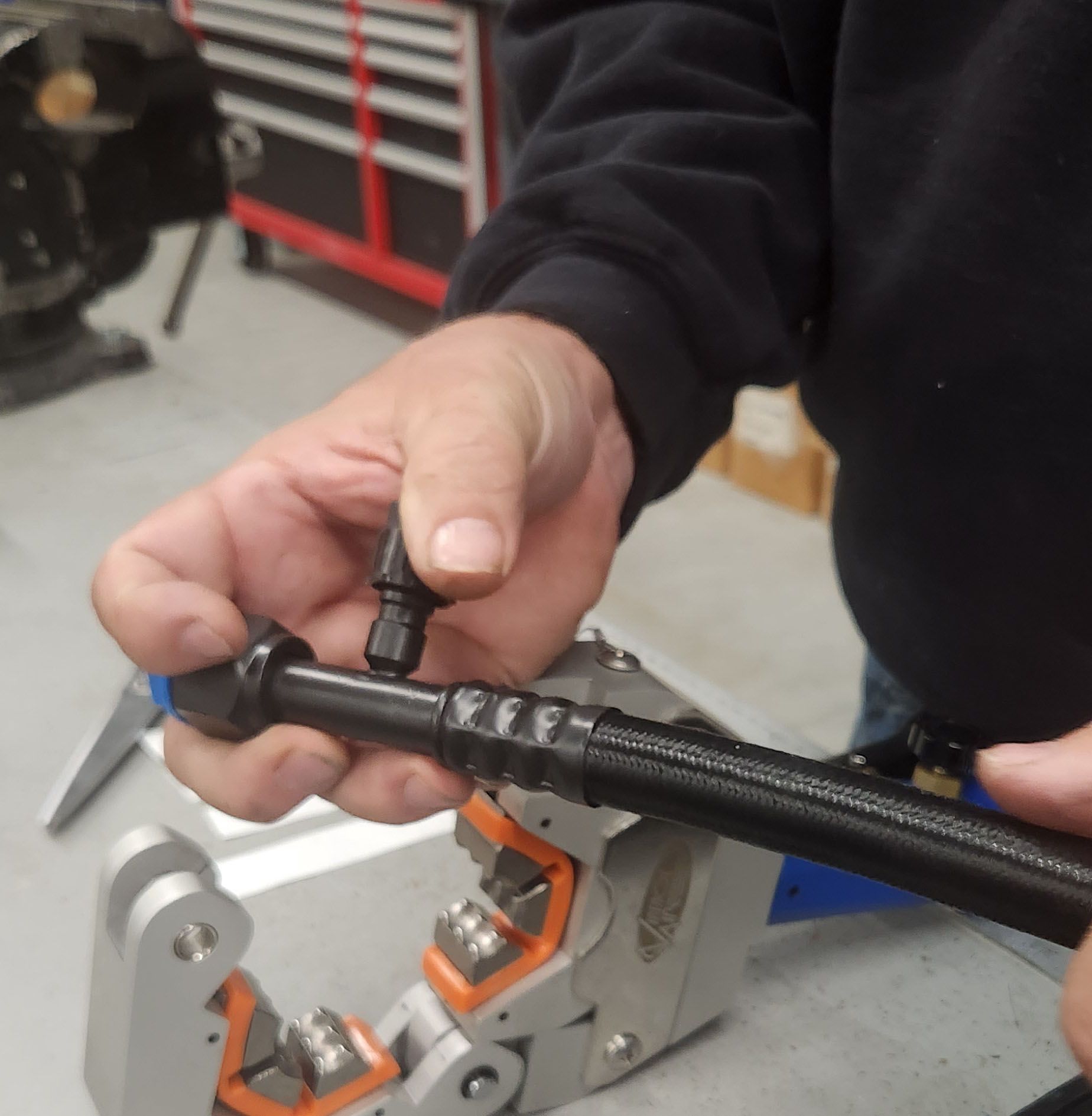

Measure and cut your Pure Stealth braided reduced barrier hose or standard reduced barrier hose to the correct length. Slide the Pure Stealth Reduced Barrier fitting onto the hose until it bottoms out in the crimp collar. Clock or index the fitting so that it is oriented in the appropriate direction. Cut the supplied crimping strip to length so that it wraps all of the way around around the crimp barrel of your fitting and secure it with a short length of masking tape.

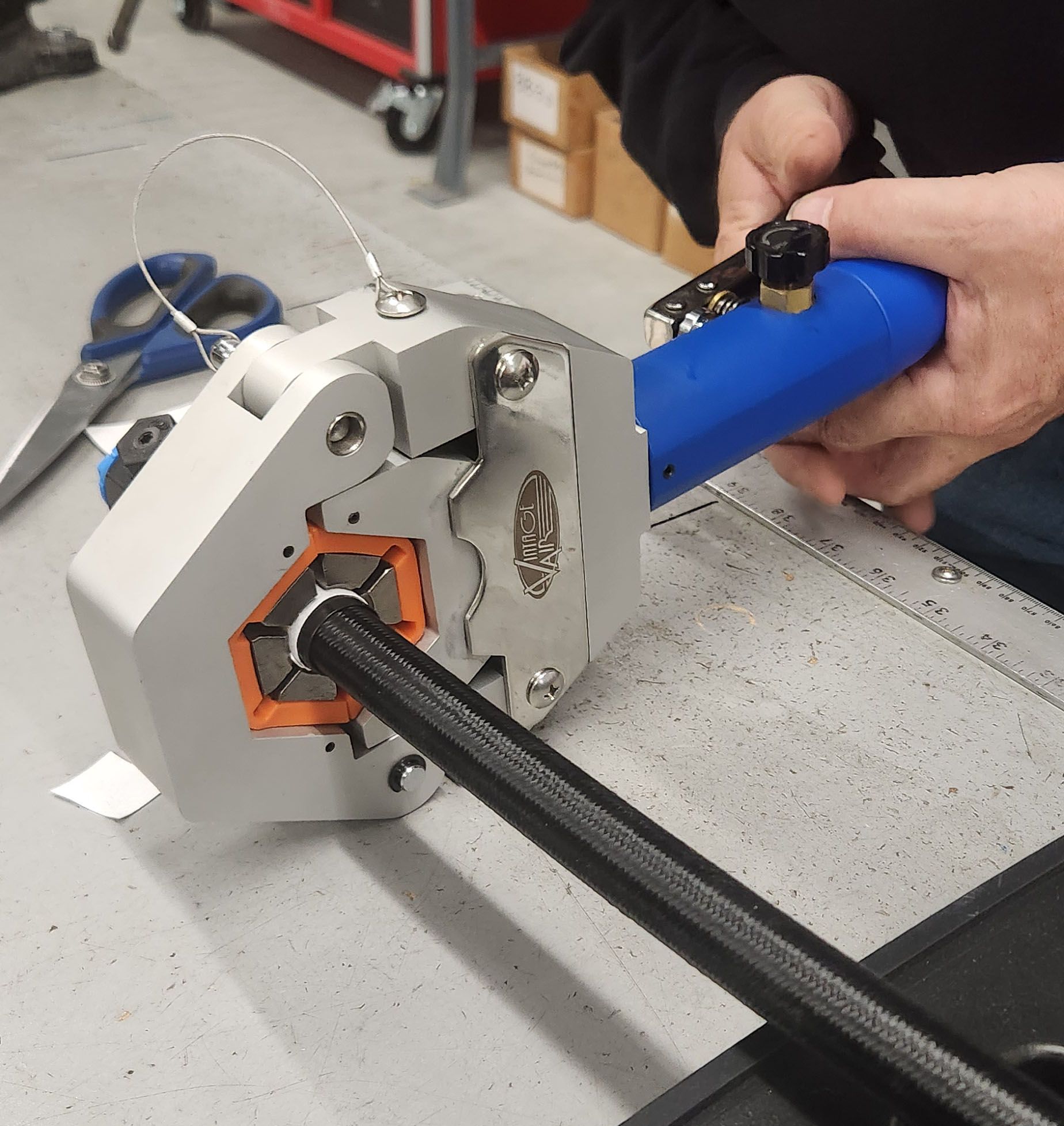

Using the correct reduced barrier crimping dies, center the crimp barrel in the dies and fully execute the crimping process.

Remove the crimped fitting from the crimper and remove the crimping cloth. Lubricate the O-ring and the threads on the fitting and your hose is ready for installation.
